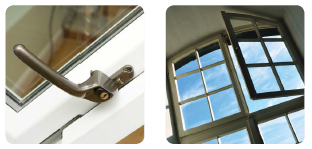

มือจับบานหน้าต่าง : สำหรับอลูมิเนียม, พีวีซี, ไม้ และติดตั้งกับเหล็ก

  Schlegel superior-quality window handles meet the highest standards of engineering quality, ease of
  installation, functionality and durability. Available in a range of styles, colours and finishes to suit all
  needs.


  Schlegel's window handle range includes inline and offset handles, manufactured to internationally recognised
  quality standards.
  * Suitable for aluminium, PVC, timber or steel windows
  * Manufactured in high quality aluminium or zinc
  * Available in a variety of standard colours – custom colours available on request




   Inline Window Handle: suitable for aluminium, PVC and timber windows
Slotted 40 mm spindle
* Die cast aluminium lever
* Solid zinc baseplate
* Heavy duty sprung latching block
* Long handle with 50 mm window clearance
* Patented cover caps with colour co-ordinated finish

window handles

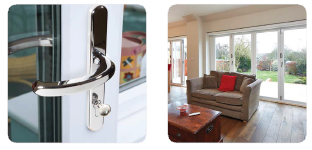

 มือจับบานประตู : สำหรับอลูมิเนียม, ประตูพีวีซี และคอมโพสิต

  Our range of door handles offer an ideal solution when looking for a beautiful product that
  alsomeets the highest standards of engineering quality and durability. We have industry
  leading knowledge, helping our customers choose the correct handle every time.


  We offer many types of door handle including lever lever, lever pad, slam shut, inline lever and patio lock
  PVC door handles, all suitable as replacement or new handles.
  Our door handles fit most PVC doors and are often fitted on front doors, back doors, patio doors and
  conservatory doors.
  * Supplied fully assembled – simple and quick installation
  * Solid die cast aluminium or zinc construction with weight balanced spring cassettes
  * Colour coordinated screw heads – perfectly matching hardware, even down to the smallest details
  * Supplied with care instructions – helps the homeowner to keep the hardware in optimal condition

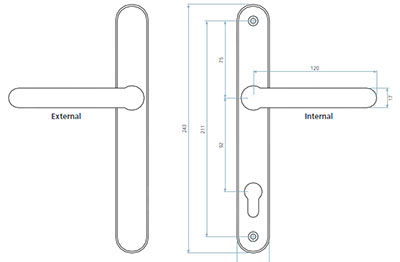

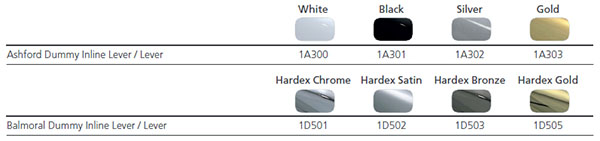

  Dummy Inline Lever / Lever:
for aluminium, PVC and composite doors
Solid die cast aluminium (Ashford) or zinc (Balmoral) construction with weight balanced
spring cassette

* Flexible purpose component
* Sculpted ergonomic lever and low friction nylon bush
* Wide backplate to accommodate larger cylinder preparation
* Supplied with screw and spindle pack to suit 60-70 mm profiles
* Colour co-ordinated screw heads

door handles

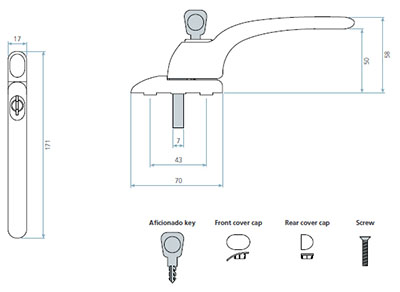

  Features & Benefits

  •Solid die cast zinc construction
  Heavyweight handle with sturdy feel
  •Heavy duty sprung latching wedge
  Positive click on closing

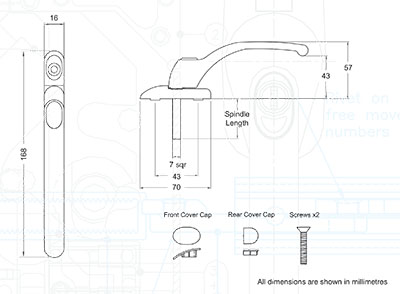

  •Long handle with 43mm window clearance
  Greater leverage and easy to operate without
  catching a hand on the window
  •Classic design with a contemporary twist
  Create an elegant and stylish window
  •Patented cover caps with colour
  coordinated finish
  Perfectly matching components, even down to
  the smallest details



Additional Benefits
• Dedicated non-locking handle
  Conforms to building regulations for non-locking windows

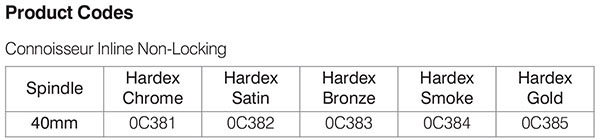

• Slotted spindle (40mm version only)
  Allows cropping to 5mm increments

Technical Specification
Designed for PVC-U and Timber windows

Certified to BS 7950:1997

All finishes salt spray tested to 480 hours
(BS EN 1670: Class 5)

Tested to 50,000 cycles

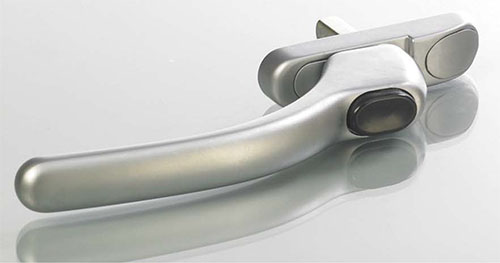

Fab&Fix
